XM-700 Portable Dot Peen Marking Machine




Product Overview

The Portable Dot Peen Marking Solution XM700 is a hand-held marking machine with a unique all-in-one design. It is fast and powerful, and the marks are deep, permanent, and highly legible.

Immediate shipping and tracking numbers provided with all orders.

Questions? Contact us asap, we're always happy to help!

40 years in business, A+ BBB Rated, 100% secure shopping.

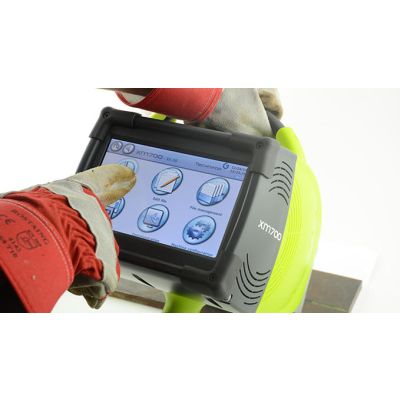

The XM-700 Portable Dot Peen Marking Solution enables users to easily and permanently identify equipment in any environment. The "Touch-n-Mark" machine features a large, intuitive touchscreen and provides direct access to marking features using a stylus, a glove, or even a finger. It is powerful, industrial, durable, and reliable, allowing users to "deep mark" even the hardest surfaces, including hard and/or rough materials and painted parts, with no special training required.


The XM-700 is operational right out of the box and offers easy data exchange with PC, barcode reader, DataMatrix™, USB key, Ethernet, and more. Using Dot-Peen marking technology, the XM-700 creates a permanent, tamper-proof mark without removing any material; in fact, the XM-700 creates the deepest mark in its class!


The XM-700 doesn't require any additional computers or control units. Featuring built-in software, a large screen, and navigation icons, the XM-700 was designed for ease-of-use and intuitive operation. You can even save your marking settings for future use to decrease production times.


With the integrated control unit and the optional battery belt, the XM-700 can be a "full mobile" solution, allowing you to mark everything, everywhere, even outdoors. Mark large and heavy equipment and even difficult-to-access products for easy identification.


The XM-700 is built with robust, lightweight components and shock-resistant composite materials. Weighing in at a mere 12.2 pounds the XM-700 is easy to move; it can also be mounted on a stand, and the optional side handle allows for greater control while marking.

More Information
- Marking type: Dot-peen
- Electromagnetic motor
- Machine Dimensions: 12.7 x 8.3 x 16 inches (322 x 210 x 406 mm)
- Marking Area: 3.15 x 1.18 inches (80 x 30 mm)

- Power cord with reinforced heavy duty cable
- Touchscreen
- 2 USB ports
- 1 RS232 port
- Adjustable metal feet
- Touchscreen stylus

- Support column
- Battery belt
- Backlight
- Code reader
- Side handle (left or right handed)
- Travel case
- Lifting ring for balancer
- Magnetic foot
- Custom foot
