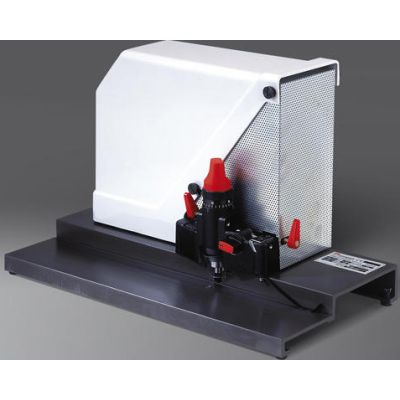

B6 Beveler
SKU
B-6
$2,105.98
Product Overview
The B-6 Bevelling Machine provides you with the ability to produce perfectly finished square and rounded corners - quickly, without mess, and in absolute safety.
Features
- Machine: ball-bearing mounted tool
- Tool speed: 24000rpm
- Travel: 4mm Vertical, 15mm Horizontal
- Vernier Scales: 2.5/100mm
- Carbon Cutter diameter: 6.35mm (fastened by two opposing screws)
- Radius device R: 5-10-15mm
- Table: 450x90mm standard; 1000x200mm optional
- Hold-down device for larger plates
- Swarf suction with air filter and anti-static box
- Total tool protection: removable top for cutter access and transparent hood over cutting edge
- Engraved plate thickness: up to 8mm
- Max. depth of bevel at 45°: 3.2mm
Standard Equipment
- 2 carbon cutters: 45° and 90°
- 2 belts
- 3 radius devices (R=5-10-15mm)
- Allen key
- Complete Instructions
Packaging
- Dimensions: 500mm x 340mm x 300mm
- Net Weight: 8.2kg
- Gross Weight: 9.5kg
