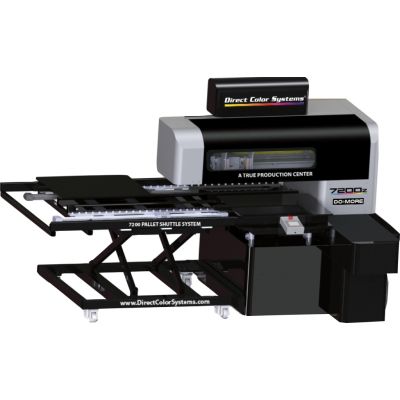

Direct Jet 7200z UV Printer

SKU

7200Z

Rating:
93% of 100
$80,000.00

Product Overview

With print speeds up to 29.7 m2/hr // 320 ft2/hr and a printable area of 600mm x 1,200mm // 23.8”1 x 48”, the 7200z is a TRUE UV printing production center.

Immediate shipping and tracking numbers provided with all orders.

Questions? Contact us asap, we're always happy to help!

40 years in business, A+ BBB Rated, 100% secure shopping.

Featuring: Pallet Shuttle System, ADA-Compliant Signage Printing, EASYCYL 7200 – Cylindrical Printing

The Most Versatile UV Printer Available

  • TEXTUR3D™ 3-dimensional prints for a unique look and feel, plus standard flat prints
  • Patent pending ADA-compliant/Braille signage option*
  • Cylindrical & conical** object printing made easy with the EasyCyl 7200 attachment
  • Roll-to-roll printing available with the EasyRoll 7200 attachment
  • Printable area: up to 600mm x 1,200mm // 23.8” x 48.0”
  • Models vary with fully adjustable heights to accommodate substrates from 0 to 15cm // 0 to 6" (7200z15) and 0 to 30cm // 0 to 12" (7200z30)
  • Print on wood, metals, ceramic tiles, plastics, glass, industrial parts, promotional products and so much more!

Best In Class Automation & Throughput

  • Max print speeds up to 29.7m /hr // 320 ft /hr
  • Vacuum table option available
  • Automated and continuous printing available with the Pallet Shuttle System
  • Automated URL design, eCommerce, & download to RIP option
  • Two individually controlled, air-cooled, UV LED lamps and 10 ink channels (C, M, Y, K, Cl, Cl, Wh, Wh, Wh, Wh) combine to enhance print speed
  • Mobile touch screen pendants allow users to operate printer from multiple points

The Best In UV Printer Technology

  • Industry leading Y-axis absolute positioning accuracy and repeatability of ±0.038mm // ±0.0015"
  • Precision Dot Control™ provides industry leading print quality
  • White Ink Circulation System – Programmable and automatic circulation of the entire white ink tank and lines
  • Bulk Ink System™ – This system allows for the 7200z to have 100% utilization of available ink, unlike single-use cartridges
  • Made in the USA – distributed globally

Direct Jet 7200z UV Printer Specification

Imaging Process

On-demand inkjet (Micro Piezo) 10-channel print head with 360 nozzles/inch/channel

Resolutions1

Draft: 360x360 / Text & Graphics: 360x720, 720x360 / Production: 720x720, 720x1440 / Quality: 1080x1440, 1440x1440, 2880x1440, 2880x2880

Ink Droplet Size (Minimum / Maximum)

3.5 picoliters / 21.8 picoliters

Ink Colors

C, M, Y, K, Cl, Cl, Wh, Wh, Wh, Wh (Cl = Clear, Wh = White)

Bulk Ink System™

User refillable 300ml tanks

Print Speed 2

29.7m2 /hr // 320 ft /hr - Draft Mode (360x360 Bi)
19m2 /hr // 205 ft /hr) - Text & Graphics Mode (360x720 Bi)

Y-Axis Absolute Positioning Accuracy & Repeatability

±0.038mm // ±0.0015"

Print Direction

Uni- and bi-directional

Maximum Printable Area

600mm x 1,200mm // 23.80”3 x 48”

Maximum Substrate Size

660mm x 1,270mm // 26.00” x 50.00” Larger substrates may be printed as the printer is open on 3 sides of the table. All substrates should be tested.

Maximum Substrate Weight

113 kg // 250 lbs.

Z-Axis (Depth/Thickness Control)

7200z15: Fully adjustable from 0cm to 15cm // 0” to 6”
7200z30: Fully adjustable from 0cm to 30cm // 0” to 12”

Media

Prints to a variety of substrates4 using the DCS Multisolve LED UV IR2 or IRF4 ink, incl. (but not limited to) plastic, glass, wood, ceramic, metal, etc.5

Control Panel

89mm // 3.5” Detachable pendant LCD touch screen display

Interface

Hi-speed USB 2.0

UV Curing System

Two individually controlled, air-cooled, UV LED lamps

Windows Operating System

Windows 7 (32 & 64 bit), Windows 8 (32 & 64 bit), or Windows 10 (32 & 64 bit)

System Minimum Requirements

CPU of >3GHz, 8GB RAM, 100 GB free hard disk space and 4 available USB ports

Power Source

100-240 VAC, 50-60 Hz., 20A auto switching

Operating Temperature

10°C to 29°C // 50°F to 85°F

Humidity

Non-condensing 20%-80%

Optional Accessories

EasyCyl 7200; EasyRoll 7200
Vacuum Table; Patent pending ADA/Braille signage module
Pallet Shuttle System; Automated URL design, eCommerce, & download to RIP

Weight

Approx. 635kg // 1,400lbs.

Dimensions

Depth 2,337mm // 92” x Height 1626mm // 64” x Width 1,575mm // 62”

Warranty

Printer 1-year limited warranty

RIP

Color Byte RIP 10 software allows input from Photoshop, Illustrator, CorelDRAW and Color Byte

Ink and Media

Available through Direct Color Systems and authorized dealers/distributors
