    Roland EGX-30A Engraving Machine

    SKU: EGX-30A
    Availability: In stock
    $3,995.00
    Add Items to Cart Add to Cart

    Quick Overview

    The fast and quiet EGX-30A engraver is today's most cost-effective, computerized engraving solution, ideal for start-up firms working on a limited budget and any business wishing to eliminate outsourcing. We also include $698.95 of additional equipment for free! Details below.

    What's Included?

    With every EGX-30A engraving machine we include a software upgrade to Letter Art and unlimited phone tech support ($545.00 value), an AS-10 10 pack ($39.95 value), a starter kit ($114.00 value) and practice engraving materials.

    Just need the machine?

    Our price on the EGX-30 is so low we aren't allowed to show it on our site! Call us at 1-800-383-5185 or send us an email for your low price!

    Roland's Dr. Engrave Engraving Software Ensures Easy Setup and Operation

    engraving applications for the EGX 30A by roland

    Included Dr. Engrave software allows you to start engraving immediately.

    Imports various types of text and bitmap images for vector tracing

    • Supports industry standard True Type fonts
    • Single Stroke Font Editor (SFEdit) creates original single stroke fonts.

    Imports Microsoft Excel database files in CSV format for variable data applications

    • Creates name plates using data imported from an address book
    • Sequential numbering function creates serial number plates

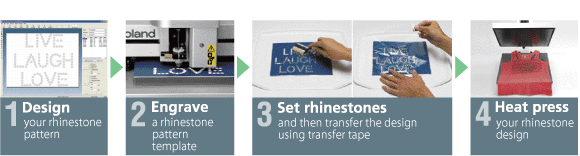

    Create one-of-a-kind rhinestone designs with R-Wear Studio (optional)

    With Roland's optional rhinestone design engraving software you can add value to T-shirts, apparel and gifts by following a few simple steps.
    optional engraving software for the roland egx-30a

    Specs
    Table 12 x 8 1/16th in (305 x 205 mm)
    Max. operation area 12 x 8 1/16th in (305 x 205 mm)
    Feed rate 1 15/16th in/sec. (50mm/sec.)
    Mechanical resolution 0.000394 in/step (0.01mm/step), 0.0000492 in/step  (0.00125mm/step) using micro step control.
    Software resolution 0.000394 in/step  (0.01mm/step)
    Distance accuracy 0.000394 in/step (+/-0.1mm) or +/-0.5% of moving distance, Whichever is greater.
    Right-angle accuracy +/-0.000394in (12 1/16” in), +/-1mm (305mm)
    Spindle motor Brushless DC motor, maximum 27W
    Revolution speed 5,000 to 10,000 rpm
    Engraving tool mounting diameter 1/8in. (3.175mm)
    Acceptable engraving materials Plastics (ABS, Acrylic) and Brass and Aluminum for Scribing
    Speed of tool up / down movement 1 per sec.
    Interface USB 1.1 (compliant with Universal Serial Bus Specification Rev. 1.1), Serial (RS-232C compliant)
    LED Operation indicators 2 (PAUSE/VIEW, ORIGIN POINT/SET ORIGIN POINT,)
    Mode Indicators 2 (ENGRAVER/SCORE)
    Control panel keys ↑,↓,←,→, SET SURFACE/TEST, PAUSE/VIEW, ORIGIN POINT/SET ORIGIN POINT, SELECT
    Power requirements Dedicated AC Adapter: AC 100 to 240V +/- 10% 50/60 Hz
    Machine: DC 24V, 0.7A
    Acoustic noise level Operation Mode: 70 dB (A) or less, Standby mode: 40dB (A) or less
    (According to ISO 7779)
    External dimensions 20-1/4 in. (W) x 19-3/8 in. (D) x 8-9/16 in. (H)
    513 mm (W) x 491 mm (D) x 217 mm (H)
    Weight 13.2 kg (29.1 lb.)
    Packed dimensions 34 in. (W) x 24 in. (D) x 12 in. (H)
    863.6 mm (W) x 609.6 mm (D) x 304.8 mm (H)
    Packed weight 37.5 lb. (17.0 kg)
    Operation temperature 41 to 104°F  (5 to 40°C)
    Operation humidity

    35 to 80% (no condensation)

    Accessories

    AC Adapter, Power cord, USB Cable, Dust collector hose and duct, Character cutter, Engraving-tool holder, Diamond scribe adapter, Hexagonal screw driver, Spanner, Hexagonal wrench, Test material, Adhesive sheet for securing material, Roland Software package CD-ROM, User’s manual
